Deep Recessed Design Explained: Why Fixture Depth Matters for Glare Control

Glare is one of the most common complaints in interior lighting. Walk into any office, hotel lobby, or retail space, and you will likely experience it within minutes. The discomfort is subtle but unmistakable: squinting, eye strain, a lingering sense of fatigue. Most people cannot explain why they feel this way.

The cause is often not the brightness of the light itself, but its visibility. When a light source contrasts sharply with the surrounding surface, the eye instinctively moves toward it. If that contrast is too high, discomfort follows.

Ceiling downlights are frequent offenders. Positioned directly in the line of sight, they create bright spots against the ceiling surface. The problem is rarely the amount of light—it is the exposure of the source itself.

The solution lies in a simple optical principle: shielding. And the most effective way to achieve it is through deep recessed design.

Understanding Glare: The Basics

Glare happens when a bright light source stands out against a darker background. Our eyes naturally gravitate toward bright areas, but when the brightness is excessive, it causes discomfort. This is not a matter of taste—it is a physiological response.

Glare falls into two categories:

Disability glare reduces contrast sensitivity, making it harder to see details—like reading a menu in a dim restaurant or working on a computer screen.

Discomfort glare causes eye strain without necessarily impairing vision. It is that nagging unease that makes a space feel unwelcoming.

Both types are common in interiors with poorly designed lighting. Both can be addressed by a single design decision: the depth of the fixture.

Why Ceiling Downlights Cause Glare

Ceiling downlights are often placed directly in the line of sight. When the light source is visible—even partially—it creates a bright spot against the ceiling. The contrast between the bright source and the darker ceiling triggers discomfort. This is especially noticeable in spaces with low ceilings, where fixtures sit closer to eye level.

The result is a space that feels harsh and uncomfortable, even when light levels are appropriate.

The Role of Fixture Depth

The deeper the light source sits inside the ceiling, the less visible it becomes. This is shielding. The ceiling itself blocks the direct view of the light source. The light remains visible. The source does not.

The Optical Principle: Shielding Angle and Visual Comfort

Shielding Angle Explained

The shielding angle is the point at which the light source becomes completely hidden from view. Deeper recesses increase this angle, making the source visible only from extreme angles. In a well-designed deep recessed fixture, the source is entirely concealed from normal viewing positions.

Think of looking into a well. If it is deep enough, you cannot see the bottom from the rim. The edge blocks your view. Same principle applies to recessed downlights.

How Depth Affects the Shielding Angle

The relationship between depth and shielding angle is exponential, not linear. A small increase in depth delivers a significant improvement in glare control.

A shallow fixture exposes the light source from almost any angle. The shielding angle is minimal. A deep fixture hides the source from most viewing positions. The ceiling edge blocks the direct view, and visual comfort improves dramatically.

The Visual Result

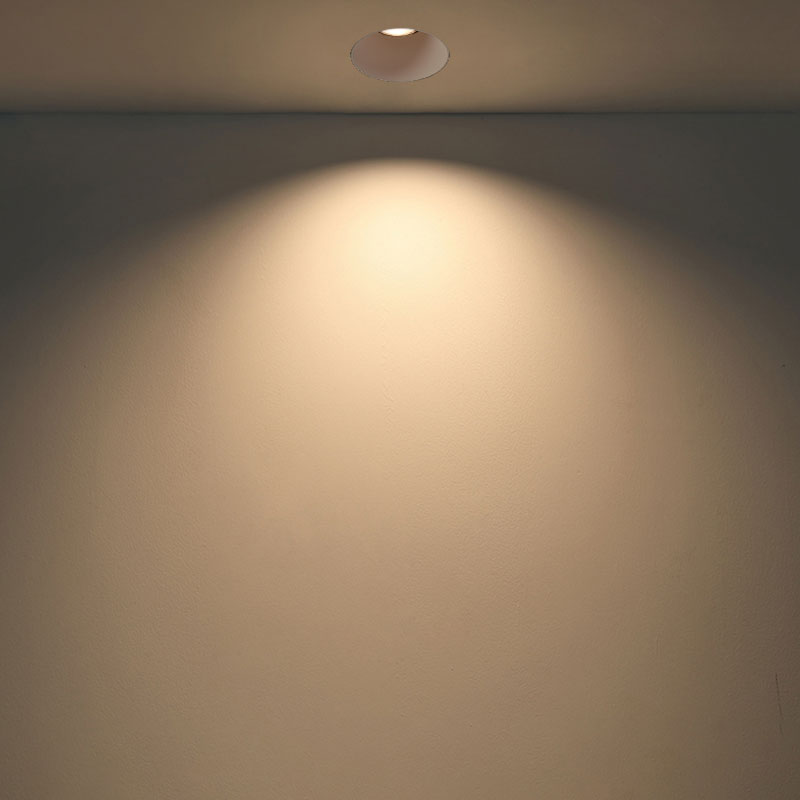

Deep recessed downlights produce soft, comfortable illumination. The ceiling stays visually calm, with no bright spots drawing the eye. Users experience the space as brighter and more comfortable—without knowing why. This is "see the light, not the fixture" in practice.

The ALPHALUCE ALDL1877: Deep Recessed Design in Practice

The ALPHALUCE ALDL1877 is a trimless recessed downlight with a deep recessed optical cavity. The light source sits well above the ceiling plane, delivering effective shielding and excellent glare control.

Key Specifications at a Glance

The Deep Recessed Advantage

The ALDL1877 was designed with depth as a primary consideration—not an afterthought. The optical cavity maximizes the shielding angle while maintaining high efficiency and color rendering.

The result is comfortable, glare-free illumination for offices, retail spaces, hotels, and residential interiors.

Beam Angles and Deep Recessed Design

The relationship between beam angle and recess depth is critical. A wide beam demands a deeper recess to maintain shielding. A narrow beam is more forgiving, as the light is more controlled.

The ALDL1877 offers four beam angles, each for a different purpose.

15° Ultra-Narrow: A tight, focused beam for pinpoint accenting. Ideal for artwork, sculptures, and architectural details. The deep recess works especially well here—the light source is nearly invisible.

24° Narrow: Versatile enough for most accent and general lighting. The deep recess ensures glare control even at moderate angles. A solid choice for display areas and hospitality spaces.

36° Medium: The workhorse of interior lighting. Balanced coverage and intensity. The deep recess maintains comfort while delivering effective ambient illumination. Ideal for offices, corridors, and living areas.

55° Wide: Broad coverage for large spaces. The widest beam depends most on recess depth. A shallow fixture with a 55° beam will cause glare. The ALDL1877's deep recess keeps it comfortable even at this angle.

Installation Flexibility: The 2–38mm Advantage

Accommodating Different Ceiling Thicknesses

The ALDL1877 fits ceiling thicknesses from 2mm to 38mm. That covers most standard constructions—drywall, plaster, wood, and more. The deep recessed design works consistently regardless of thickness.

Ease of Specification

One fixture works across multiple ceiling types. That simplifies specification for architects and designers. Consistent performance across installations.

The 5-Year Warranty: Long-Term Value

ALPHALUCE backs the ALDL1877 with a 5-year warranty. That is a statement of confidence in the product's durability and performance. For specifiers, it lowers the risk of future maintenance costs. For end users, it means peace of mind.

The warranty covers both the LED source and driver components.

Application Scenarios

Open-Plan Office

In offices, glare contributes to eye strain and reduced productivity. The ALDL1877's deep recessed design removes the source of discomfort.

Use 36° or 55° beams for broad coverage with visual comfort. High CRI ensures accurate color rendering—valuable for design and creative work.

Hotel Corridors

Hotel corridors are narrow, and fixtures sit directly in the line of sight. Glare diminishes the guest experience. The ALDL1877 eliminates it, creating a calm journey through the building.

Use 24° or 36° beams with warm CCT (2700K or 3000K) for a welcoming atmosphere. High CRI keeps finishes and artworks looking true.

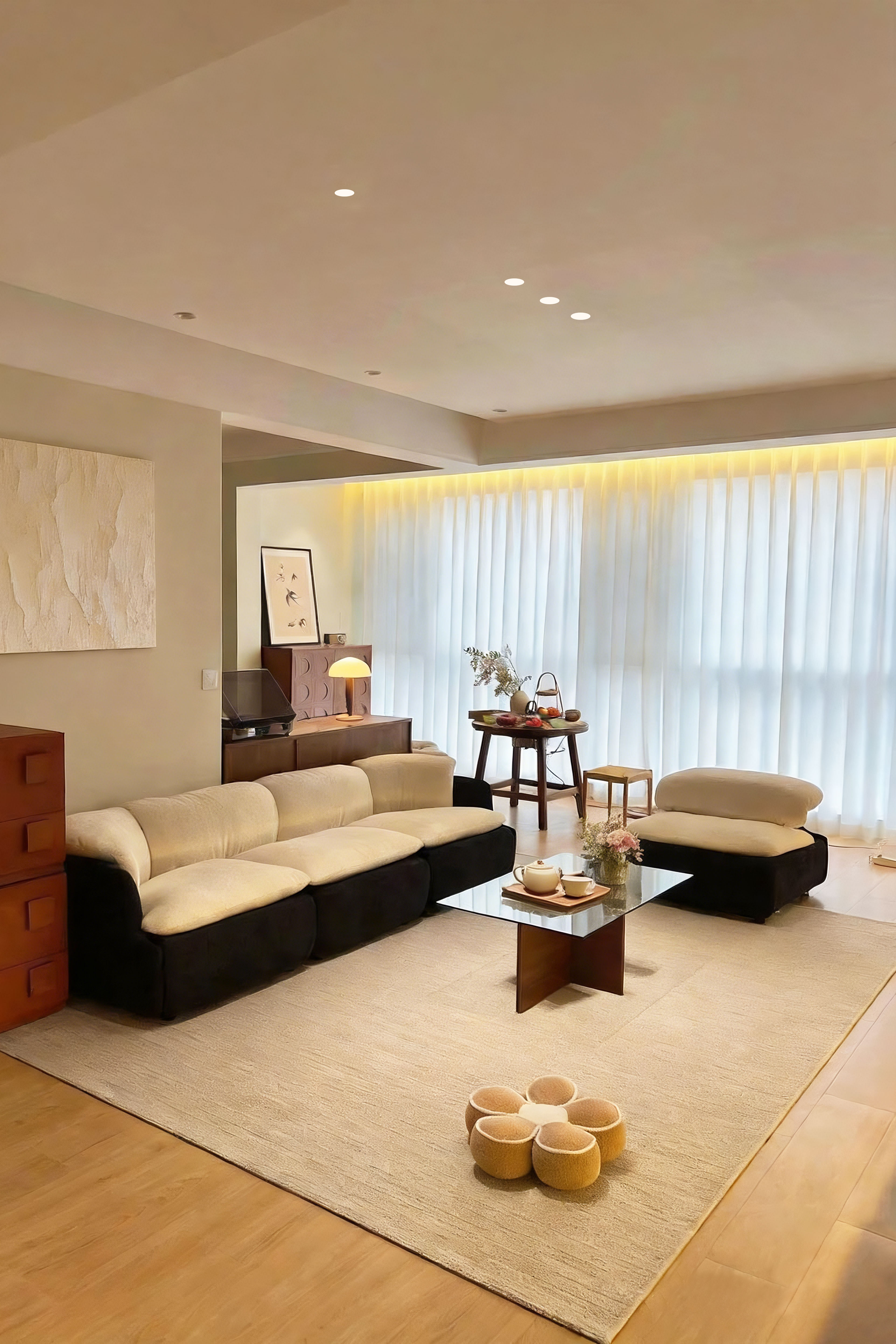

Residential Living Rooms

Homeowners care about comfort. The ALDL1877 delivers glare-free illumination that makes a living space feel inviting, not harsh.

Use 36° beams with warm color temperature for a relaxed atmosphere. Dimming adds flexibility for different activities and times of day.

Art Galleries

In galleries, glare is not just a comfort issue—it is a display issue. It obscures details and distorts colors. The ALDL1877 eliminates glare while high CRI ensures accurate color reproduction.

Use 15° or 24° beams for precise accenting on individual works. The deep recess keeps fixtures invisible, letting the art take center stage.

Conclusion: Depth Is the Detail That Matters

Glare affects every space—offices, hotels, homes, galleries. The solution is simpler than many designers realize: choose fixtures with deep recessed design.

The ALPHALUCE ALDL1877 shows how depth, beam angle, and optical quality work together to eliminate discomfort. The deep recessed optical cavity ensures effective shielding. Four beam angles provide flexibility. High CRI ensures accurate color rendering.

When you control glare, you do not just improve the light—you improve the experience of the space. Occupants feel more comfortable. Finishes look better. Spaces feel more refined.

Depth may seem like a minor detail. In lighting design, it is often the detail that makes all the difference.
