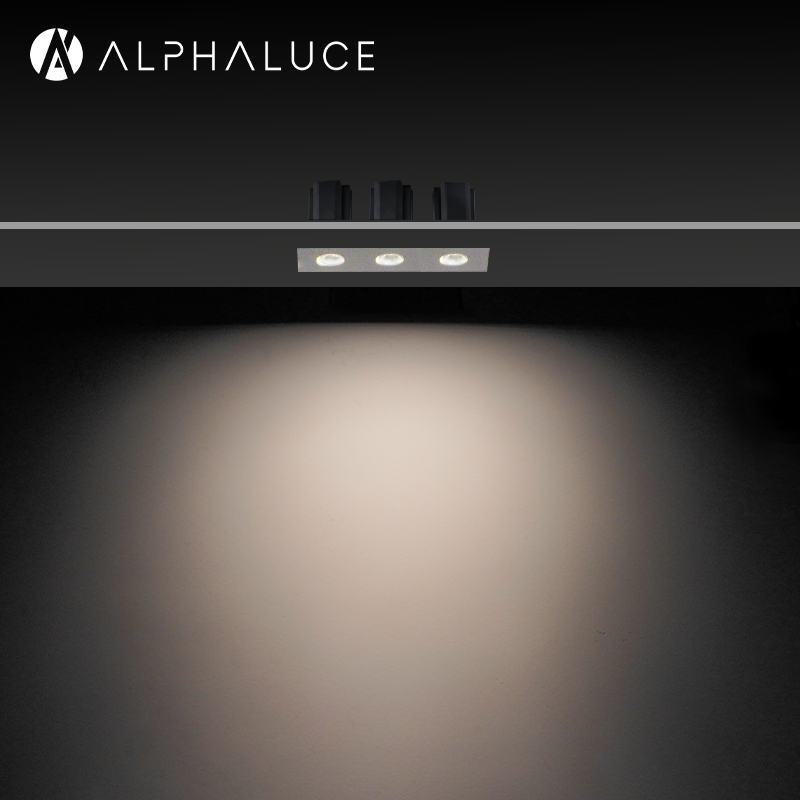

BET ALDL1925 anti glare downlights recessed linear light

ALDL1925

CRI
Ra≥92/97
Beam angle
-
CCT
2700K/3000K/4000K
  • TEXTURE WHITE

  • TEXTURE BLACK

Share
Technical Parameter
  • Characteristics
    INSTALLATION
    Recessed
    Adjustability
    Fixed
    Material
    Aluminum Alloy
    Color temperature
    2700K/3000K/4000K
    Beam angle
    -
    Optics
    Lens
    IP
    IP20
    Warranty(Year)
    5-Year
  • Photometric Result
    Light source
    COB
    Luminous flux
    3*960lm
    CRI
    Ra≥92/97
    UGR
    <12
    LED Qty
    1
    Energy Class
    F
    LM80
    L90B10>50000
    McAdam
    SDCM <3
  • Electrical Specifications
    Power
    3*7W
    Input current
    180mA
    Power supply
    Exclude LED power supply 3*36V/180mA
    Class
    III
  • Dimensions
    Overall Dimension
    -
    Cutout
    Ø38*121mm
    Thickness of mounting surface
    1-25mm
    Recessed Depth
    -
    Weight
    -
