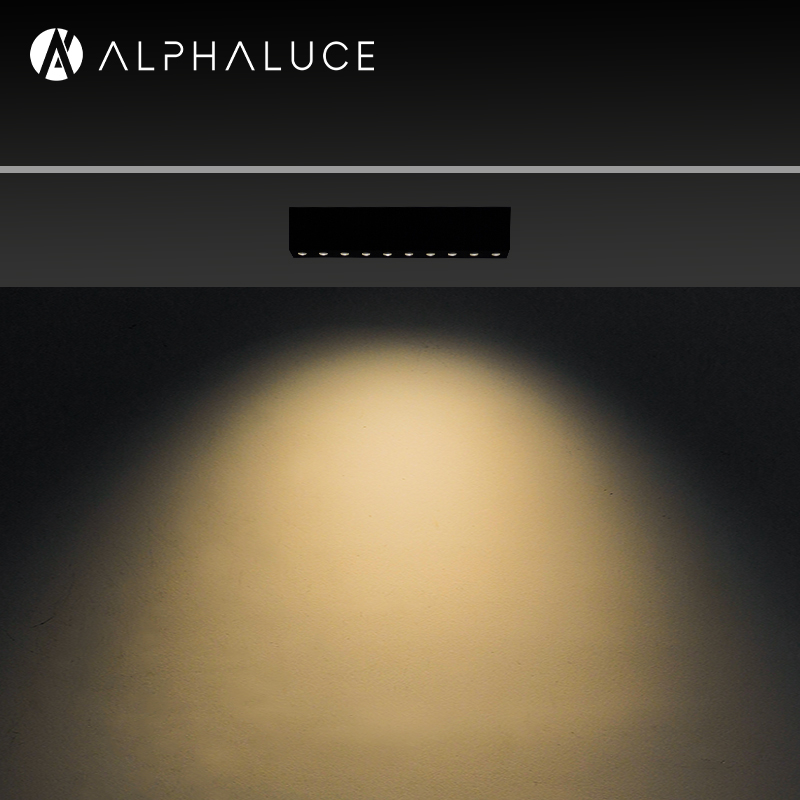

BET ALCH0167 anti glare downlights surface mounted linear light

ALCH0167

CRI
Ra≥92/97
Beam angle
24°/36°
CCT
2700K/3000K/4000K
  • TEXTURE WHITE

  • TEXTURE BLACK

Share
Technical Parameter
  • Characteristics
    INSTALLATION
    surface mounted
    Adjustability
    Fixed
    Material
    Aluminum Alloy
    Color temperature
    2700K/3000K/4000K
    Beam angle
    24°/36°
    Optics
    Lens
    IP
    IP20
    Warranty(Year)
    5-Year
  • Photometric Result
    Light source
    COB
    Luminous flux
    2700lm
    CRI
    Ra≥92/97
    UGR
    <12
    LED Qty
    1
    Energy Class
    F
    LM80
    L90B10>50000
    McAdam
    SDCM <3
  • Electrical Specifications
    Power
    30W
    Input current
    -
    Power supply
    Exclude LED power supply AC230V
    Class
    III
  • Dimensions
    Overall Dimension
    358*43*66mm
    Cutout
    -
    Thickness of mounting surface
    -
    Recessed Depth
    -
    Weight
    -

surface mounted linear light
